How to add a tip on a PAX A920



Have more questions? Submit a request

The tipping feature can be disabled or enabled depending on the merchant agreement. When the feature is enabled, the purchase transaction may request for a Tip. The following screens can be observed when the tipping capability is enabled:

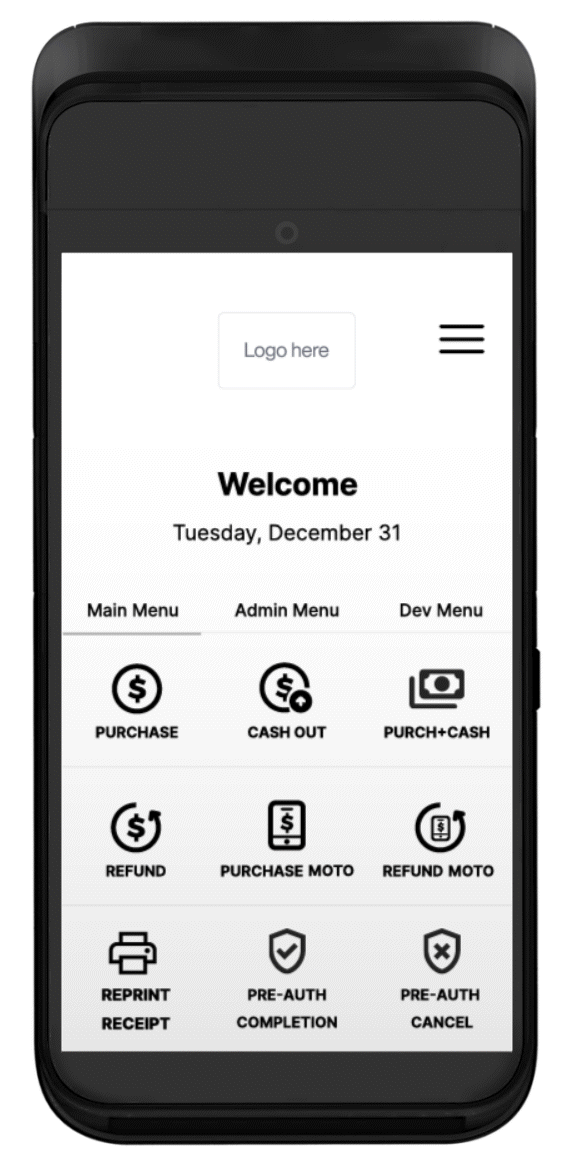

Initiate a Purchase transaction on the main menu.

PAXA920_Main Menu_Purchase.gif

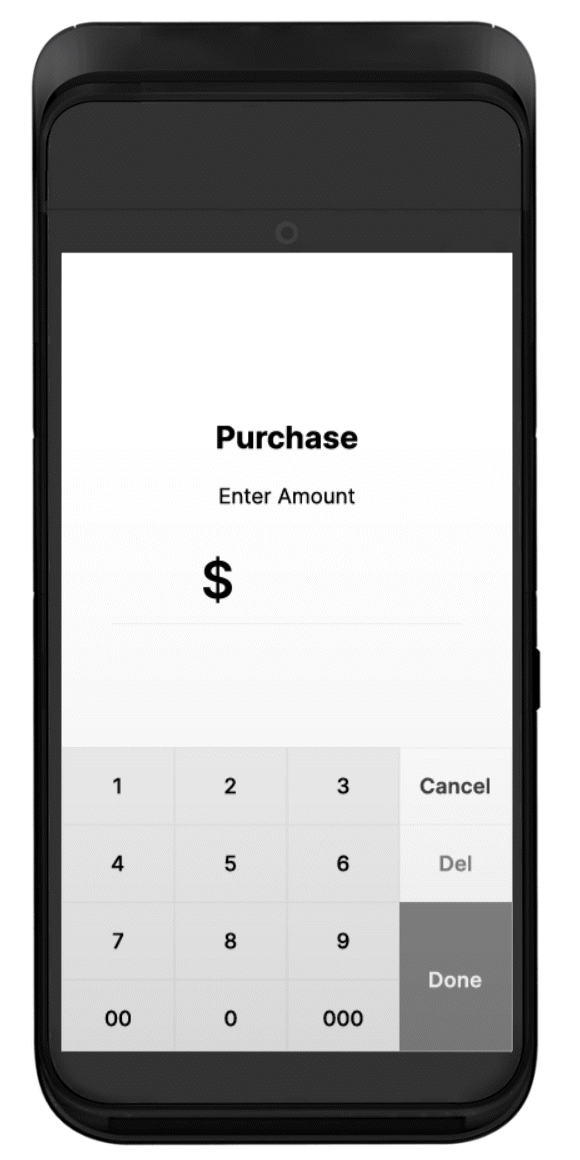

Insert the transaction amount and press Done.

PAXA920_Purchase_Enter Amount.gif

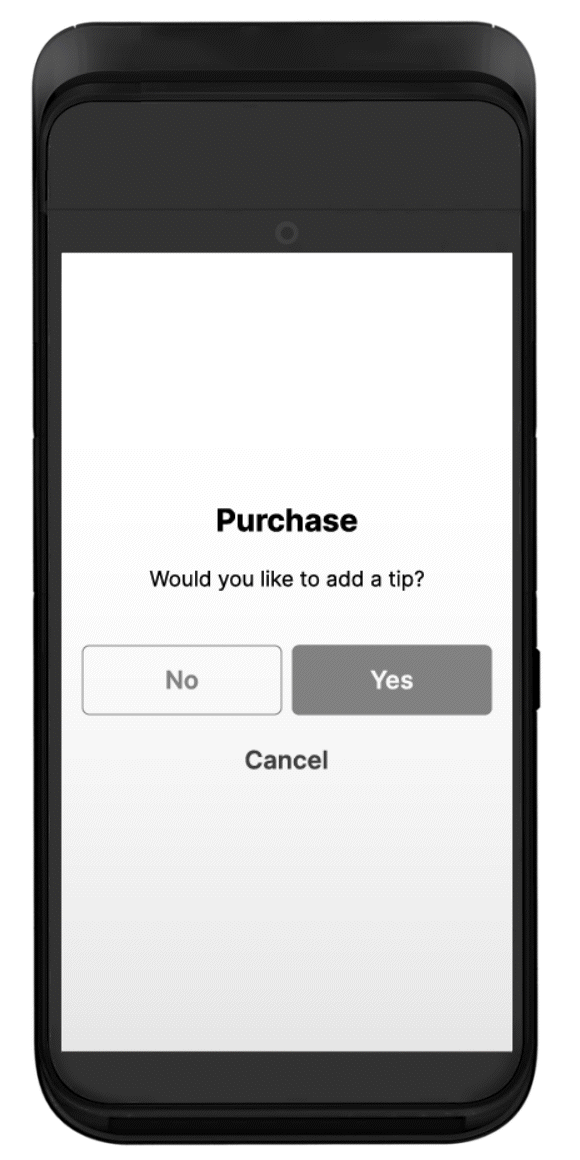

The terminal will prompt the customer to add a tip to the transaction. Press Yes to proceed with adding a tip.




The screen shows the initial purchase transaction, the tip selected and the new total amount. Select the tip amount or Other Amount and press Next.

PAXA920_Purchase_Tip_Other Amount.gif

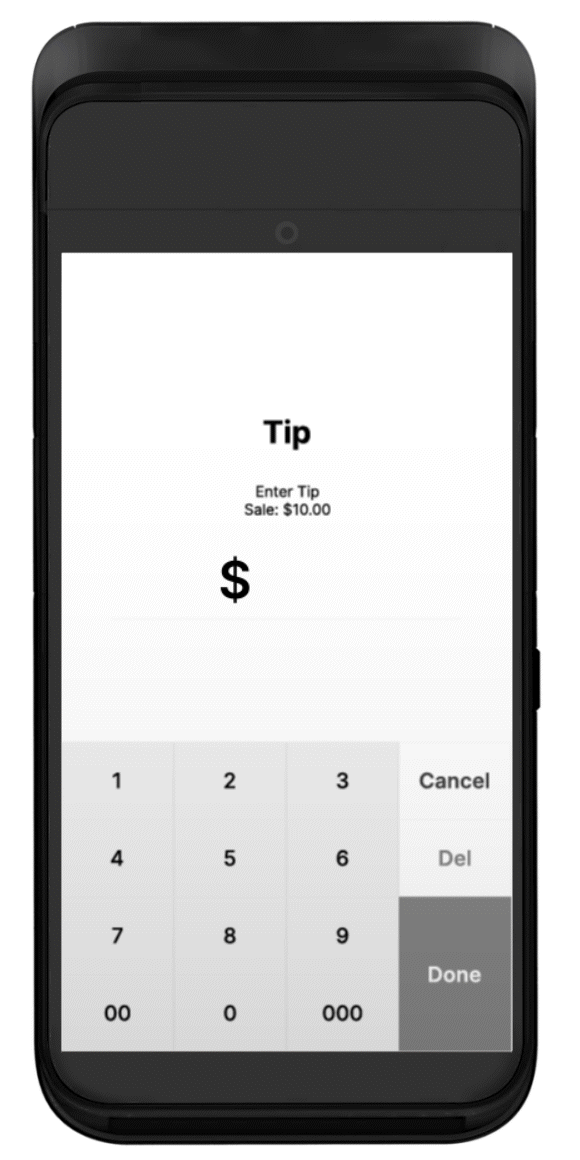

Add the tip amount if you select Other Amount and press Done.

PAXA920_Purchase_Tip_Enter Amount-Victoria's MacBook Pro.gif

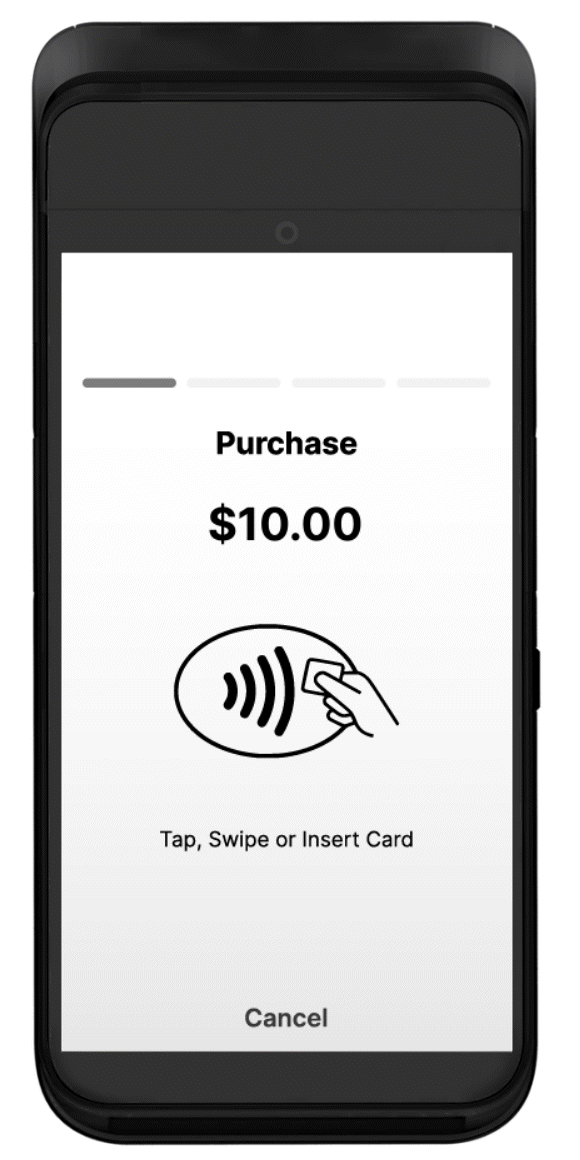

Request your customer to present their card on the contactless card reader.

PAXA920_Purhcase_Tap Card.gif

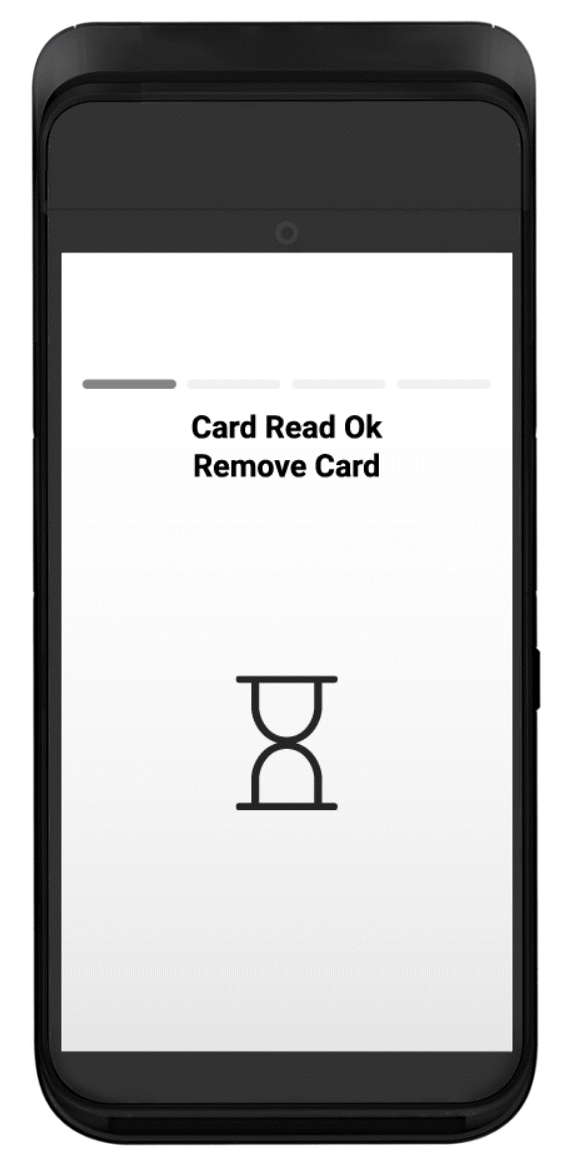

Once the card has been presented, the terminal will start processing the transaction.

PAXA920_Card Read Ok.gif

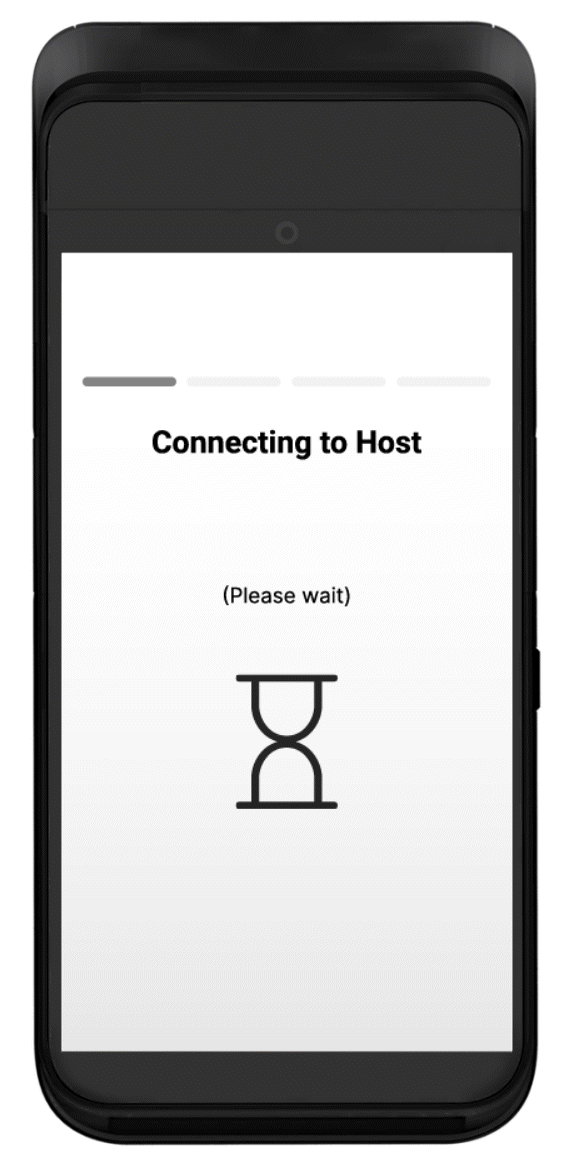

When transaction is processed on the terminal, it will be sent to the card issuer (Host) for approval.

PAXA920_Connecting to Host.gif

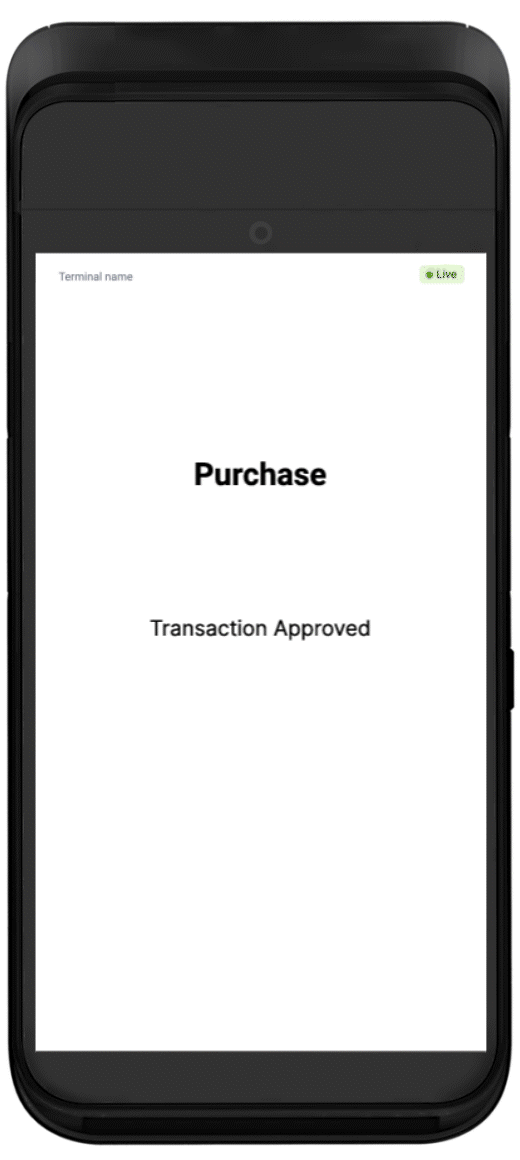

The terminal will advise if the transaction has been approved.


PAXA920_Purchase_Transaction Approved.gif
