The baud rate measures the speed of data transmission over a communication channel. Variations in the baud rate can cause your Ingenico Move5000 PIN pad to go offline. A low baud rate can cause slow data transfer and long wait times, while a high baud rate can cause errors and data corruption. It's vital to set the baud rate correctly to ensure optimal performance.
To change the baud rate, follow the steps below.

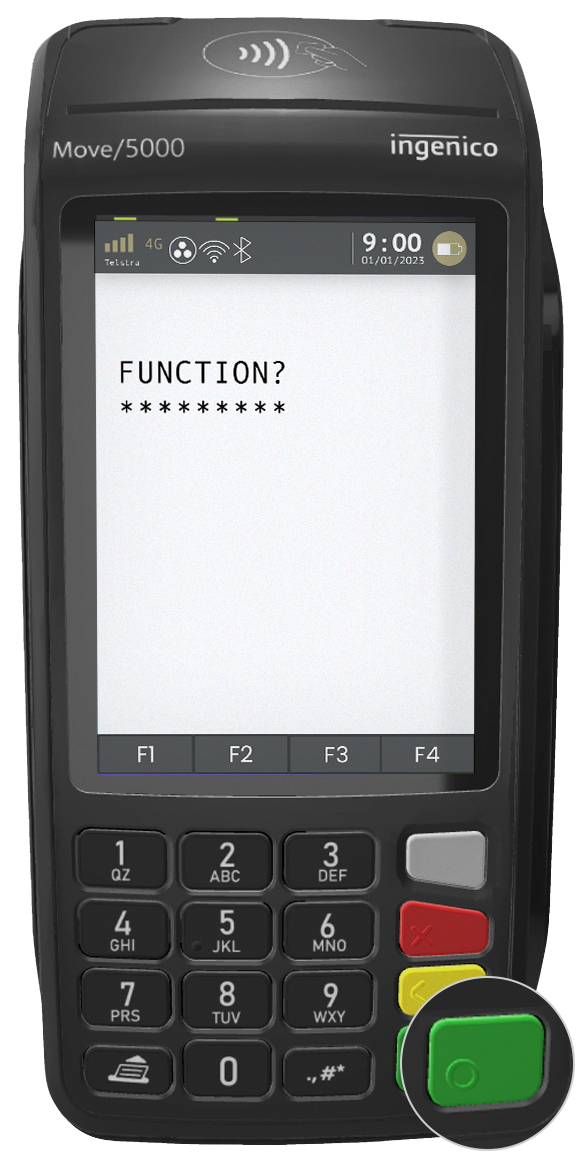

Enter Function Mode
Press the FUNC key and insert the number 11112227.
Then press ENTER (highlighted below).

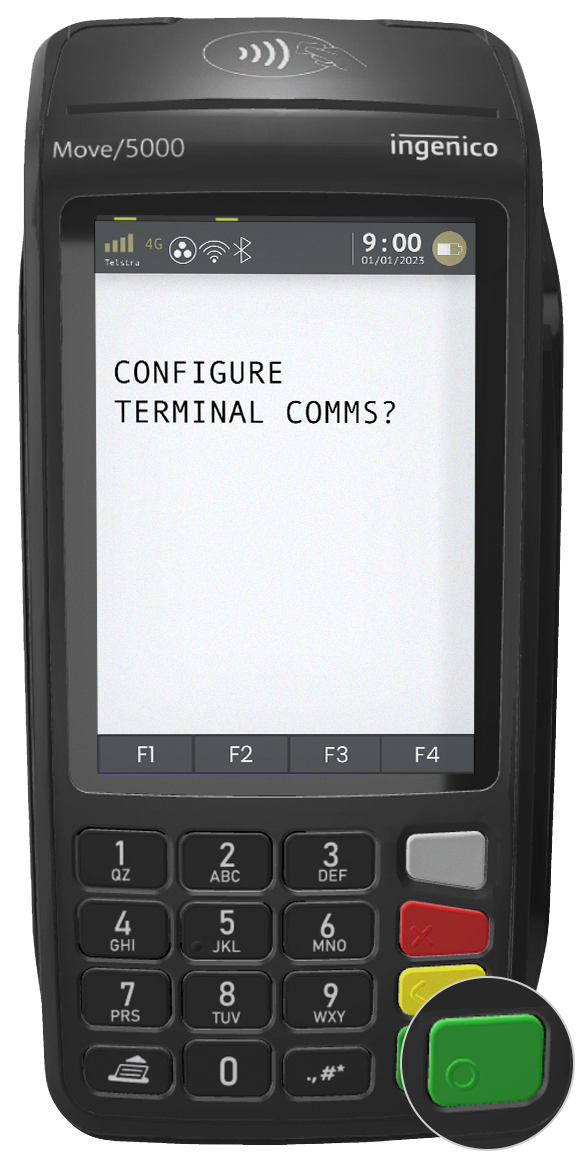

Configure Terminal Comms
When requested to configure terminal comms, press ENTER.

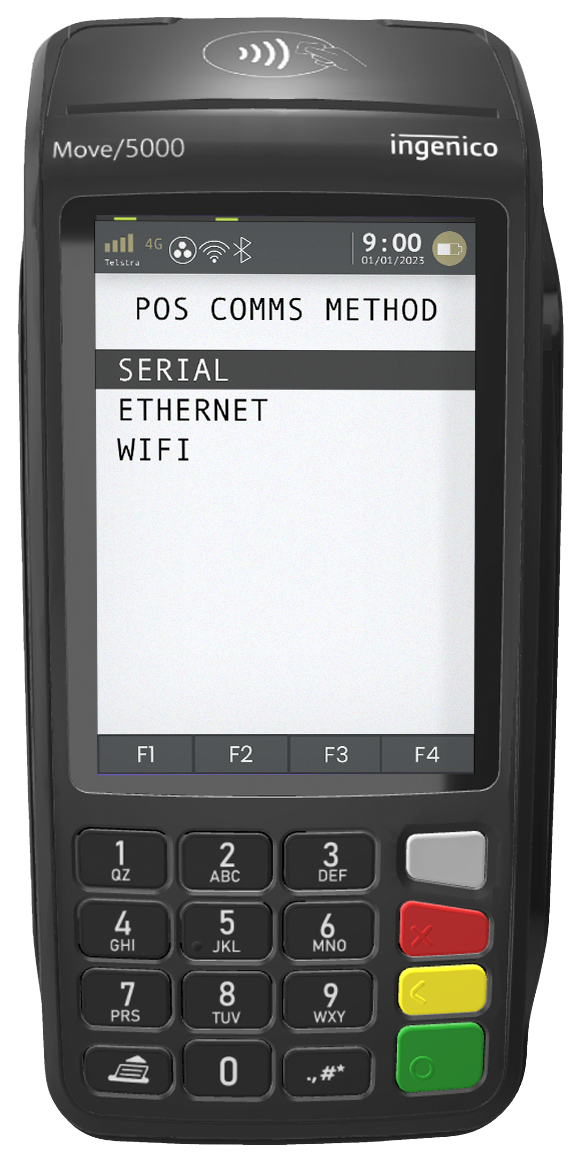

POS Comms Method
Select SERIAL on the screen.

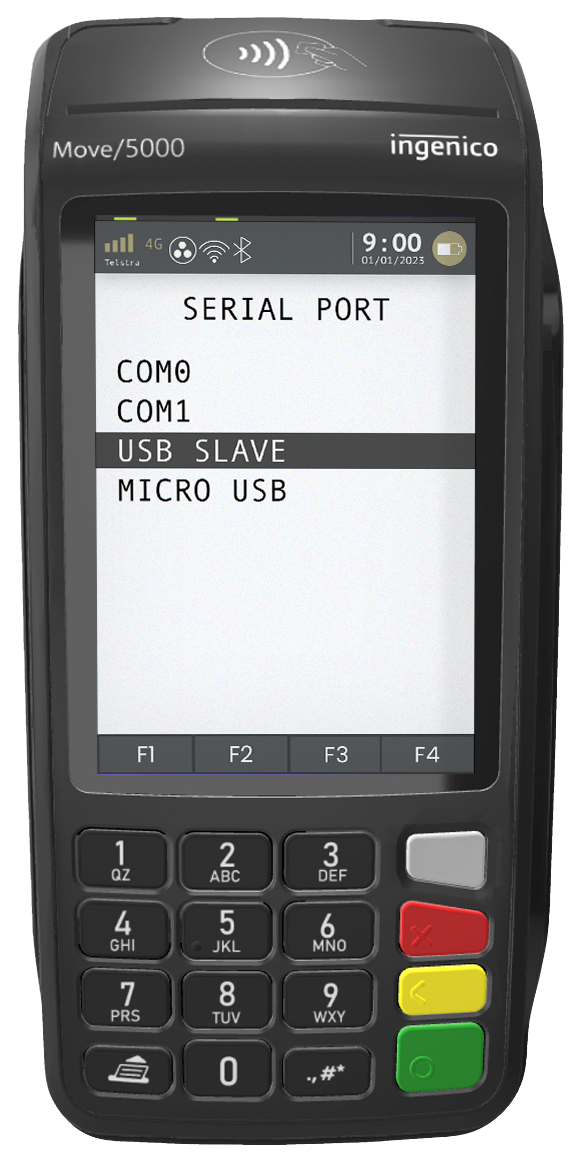

Serial Port
Select USB SLAVE on the screen.

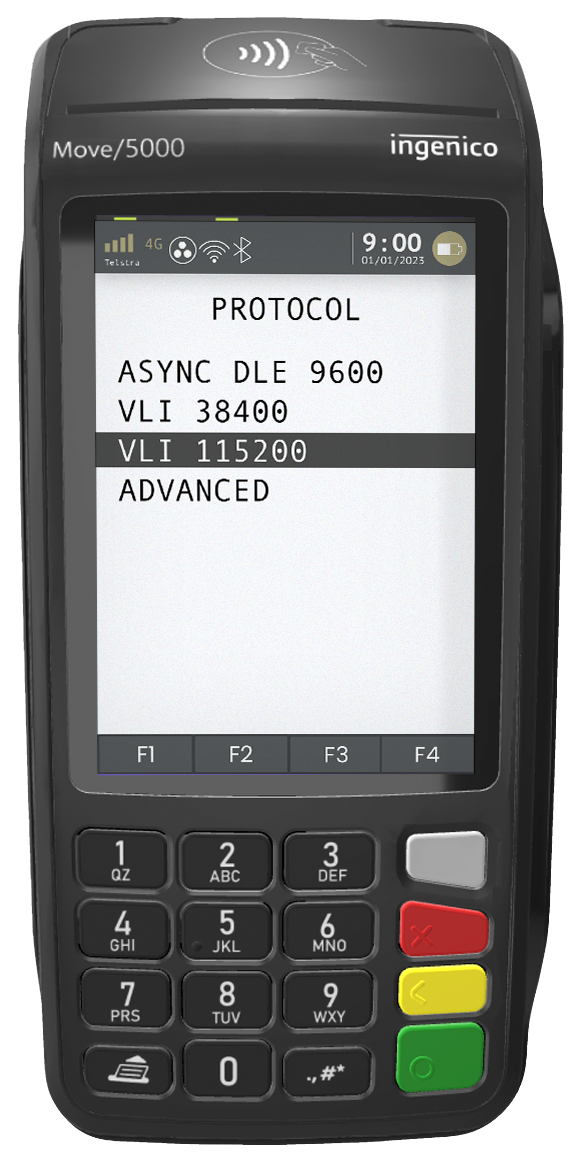

Protocol
Select VLI 38400
(115200 should be selected as default) on the screen.

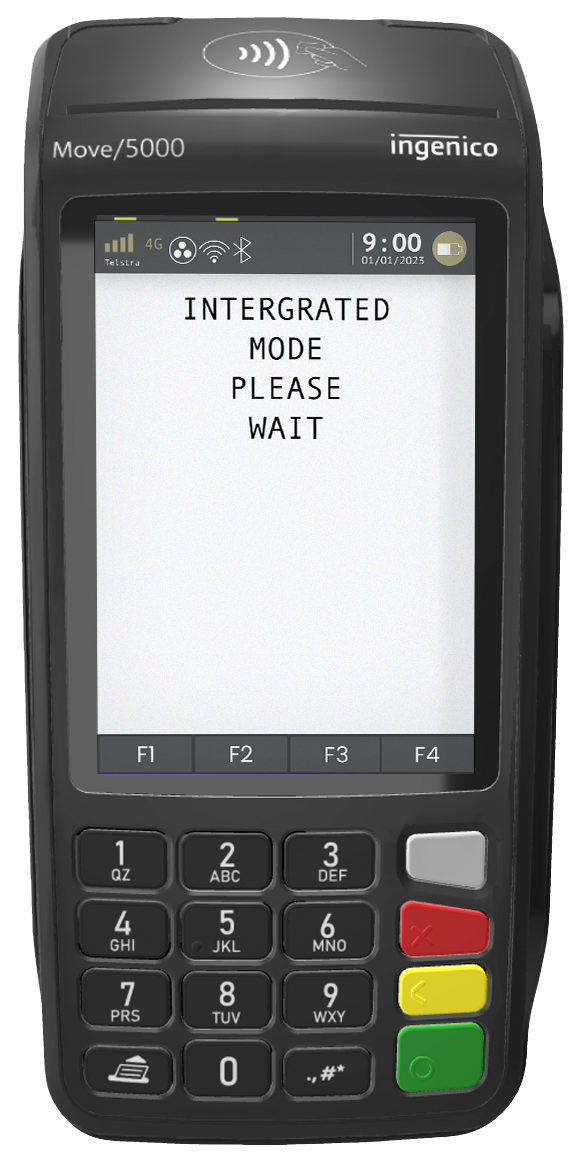

Integrated Mode
INTEGRATED MODE PLEASE WAIT
should now appear on the screen.
